Code examples
Import experimental images
Import experimental images
Code to import an experimental interferogram, process it, and display the QLSI images
%% code to import an experimental interferogram, process it, and display the QLSI images
MI = Microscope(OB,180,'Silios_mono');% Create the Microscope object
IL = Illumination(532e-9); % Create the Illumination object
Itf = imread('data/Itf.tiff'); % Import the main interferogram
Ref = imread('data/Ref.tiff'); % Import the reference interferogram
Im = Interfero(Itf,MI); % Make the interferogram object
Im0 = Interfero(Ref,MI); % Make the reference interferogram object
Im.Reference(Im0); % Assign the reference to the interferogram
IM = QLSIprocess(Im,IL); % Process the QLSI images
IM.figure; % Display the images in a GUI (image below)
Auto import experimental images
Automatically import experimental images
Code to automatically import experimental interferograms
%% code to import an experimental interferogra
MI = Microscope(OB,180,'Silios_mono','PhaseLIVE'); % Create the Microscope object
% and tell the imaging software
IL = Illumination(532e-9); % Create the Illumination object
Itf = imread('data/Itf.tif'); % Import the main interferogram
Ref = imread('data/Ref.tif'); % Import the reference interferogram
Im = importItfRef('data', MI); % Import the interferogram and their references
This code knows how to import the images, and where to find the reference images, because the imaging software was indicated (here 'PhaseLIVE', our personal Matlab toobox for live imaging, not included in PhaseLAB).
Image simulation
Image simulation
Code that simulates the image of a gold nanoparticle
%% code that simulates the image of a gold nanoparticle
lambda = 530e-9; % Illumination wavelength
Npx = 300; % Final image with Npx*Npx pixels
n = 1.33; % Refractive index of the surrounding medium
ME = Medium(n);
OB = Objective(200,1.3,'Olympus');
CGcam = CGcamera('Silios_mono');
MI = Microscope(OB,180,CGcam);
IL = Illumination(lambda,ME);
radius = 50e-9; % Nanoparticle radius
DI = Dipole('Au',radius);
DI = DI.shine(IL);
IM0 = imaging(DI,IL,MI,Npx);
IM0.figure
Image postprocessing
Image postprocessing
Examples of QLSI images postprocessing
%% code that performs successive image processings
% crop of the image
IM0.crop('Size', 300, 'Center', 'Manual')
% flattening of the background
IM0.flatten(3)
% numerical refocusing by 0.5 µm
IM0.propagation(0.5e-6)
% flip the image upside down
IM0.flipud()
% high-pass filter
IM0.highPassFilter(20)
%image diplay
dynamicFigure('ph',IM0,'bw',{IM0.T})
Make a movie
Making a movie
Animating the image of nanoparticles as a function of the focus.
%% code that animates the image of a ring of nanoparticles
clear
lambda = 530e-9; % Illumination wavelength
Npx = 1200; % Final image with Npx*Npx pixels
n = 1.33; % Refractive index of the surrounding medium
ME = Medium(n);
OB = Objective(100,1.3,'Olympus');
CGcam = CGcamera('Silios_mono');
MI = Microscope(OB,180,CGcam);
IL = Illumination(lambda,ME,1,[1 1i]); % circularly polarized illumination
radius = 50e-9; % Nanoparticle radius
DI0 = Dipole('Au',radius);
DI = repmat(DI0,12,1);
R=3e-6; % radius of the ring
for ii=1:12
DI(ii)=DI(ii).moveTo('x',R*cos(2*pi*ii/12),'y',R*sin(2*pi*ii/12));
end
DI = DI.shine(IL);
Nf = 21; % number of nanoparticles over the ring
focus = linspace(-2,2,Nf)*1e-6; % various focus distances
IM = ImageEM(Nf);
for iz = 1:Nf % positioning of the Nf nanoparticles
MI.zo = focus(iz);
IM(iz) = imaging(DI,IL,MI,Npx);
end
IM.crop(Size=300);
IM.makeMoviedx('IM.avi','theta',0,'phi',0,'rate',2,'zrange',[-10 10])
In Silico simulation
In Silico simulation
Code that simulates the image of a gold nanoparticle including shot noise
%% code that simulates the image of a gold nanoparticle including shot noise
lambda = 530e-9; % Illumination wavelength
Npx = 120; % Final image with Npx*Npx pixels
% model the setup
ME = Medium('water', 'glass');
OB = Objective(100,1.0,'Olympus');
CGcam = CGcamera('sC8-944');
MI = Microscope(OB,'Olympus',CGcam);
IL = Illumination(lambda,ME);
% model the nanoparticle
radius = 60e-9; % Nanoparticle radius
DI = Dipole('Au',radius); % creation of the Dipole object
DI = DI.shine(IL); % illumination of the dipole
% compute the images
IM0 = imaging(DI,IL,MI,Npx);
% model the experimental interferogram
Itf = CGMinSilico(IM0,'shotNoise',true);
% processing the in Silico images
IM = QLSIprocess(Itf,IL);

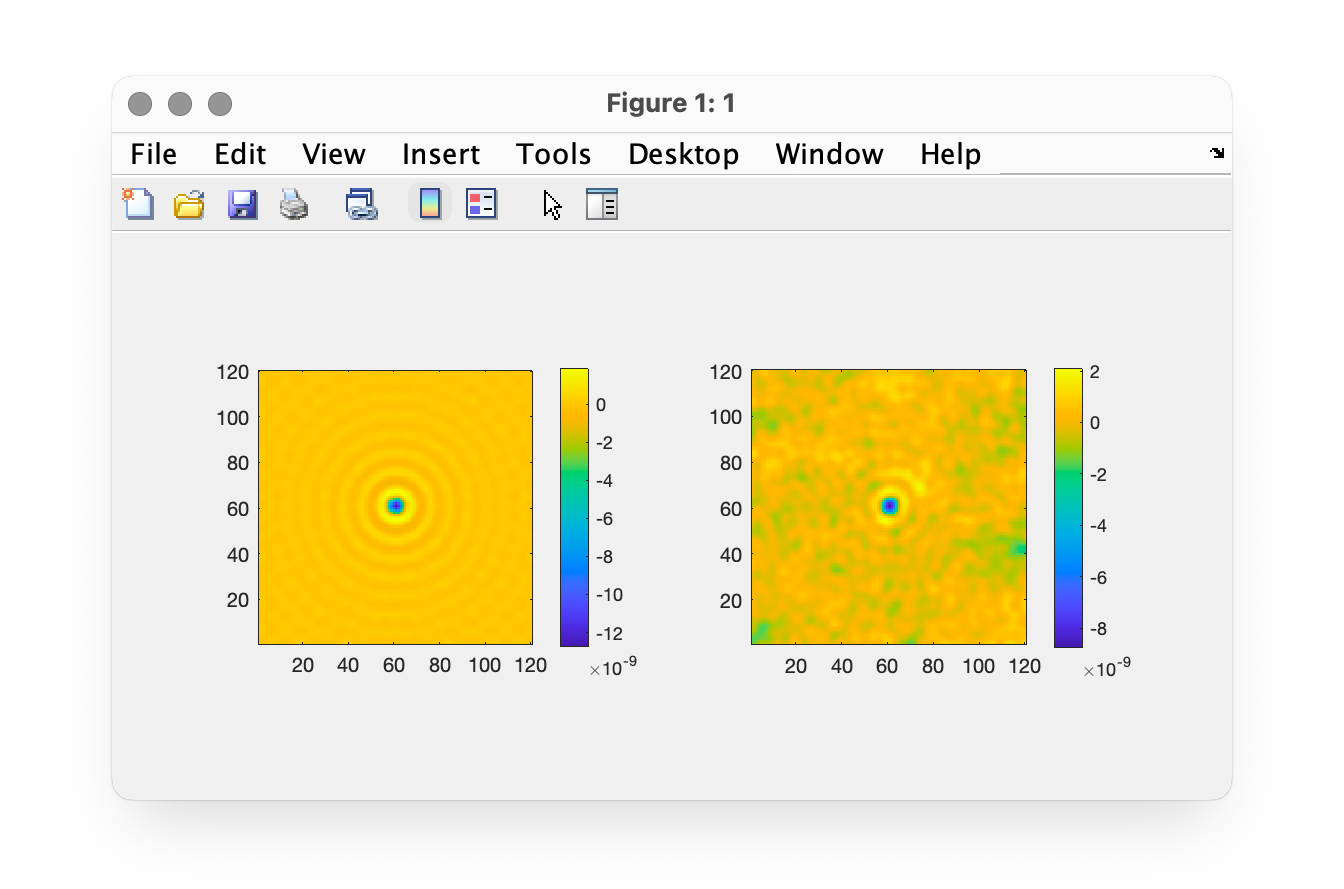

% display the theoretical and in Silico images
dynamicFigure('gb',IM0,'gb',IM)
Numerical refocusing
Numerical refocusing
Code to numerically modify the focus of the image
%% Code that imports one experimental image (of long Geobacillus bacteria)
%% and creates a series of images at different focuses from this single image
ME = Medium('water','glass');
OB = Objective(100,0.7,'Olympus');
MI = Microscope(OB,200,'sC8-944','PhaseLIVE');
lambda = 531e-9;
IL = Illumination(lambda,ME);
%% IMPORT THE IMAGES
folder = 'GeobLongFilaments';
Im = importItfRef(folder,MI);
%% INTERFEROGRAM PROCESSING
IM = Im.QLSIprocess(IL);
%% list of defocus values in µm
zList = -20:10;
No = length(zList);
IMlist = ImageQLSI(No);
for io = 1:No
IMlist(io) = copy(IM(1));
IMlist(io) = IMlist(io).propagation(zList(io)*1e-6);
IMlist(io).comment = [num2str(zList(io)) ' µm'];
end
% select the area supposed to correspond to a zero wavfront value
IMlist.level0(Center="Manual", Size="Manual");
% crop the image
IMlist.crop(Size=2000);
% build a movie from the series of images:
IMlist.makeMoviedx('/Users/perseus/Documents/im.avi', ...
persp=0,theta=0, phi=0, ...
zrange = [-80, 100])
Color imaging
Color imaging
Code to process QLSI data acquired with a color-camera
%% MICROSCOPE
ME = Medium('water','glass');
OB = Objective(60,0.7,'Olympus');
Cam = Camera('Silios');
Gr = CrossGrating('Gamma',39e-6);
CGcam = CGcamera(Cam,Gr,1.1931);
MI = Microscope(OB,200,CGcam,'PhaseLIVE');
CGcam.setDistance(0.8e-3);
lambda = 680e-9;
IL = Illumination(lambda,ME);
folder = 'GeobColor';
%% Import interferos
Itf = importItfRef(folder,MI,"nickname","geobSyto9");
Bkg = importItfRef(folder,MI,"nickname","geobSyto9Bkg");
Ref = importItfRef(folder,MI,"nickname","geobSyto9Ref");
Itf.Reference(Ref.mean())
%% Process interferos
Itf.removeOffset(Bkg.mean());
Itf.crop(Size=1200)
%% color images processing
Itfs = Itf.splitColors();
Itfsc = crosstalkCorrection(Itfs);
%% process fluo and OPD images
IMG = QLSIprocess(Itfsc(:,1),IL,"Tnormalisation",'subtraction');
IMR = QLSIprocess(Itfsc(:,2),IL);
dynamicFigure('fl',{IMG.T}, 'ph', {IMR.OPD})
%% merge green and red channels to be displayed with the figure method
IM = [IMG, IMR];
IM.figure
Left: fluorescence image of bacteria. Right: corresponding OPD image.
Temperature processing
Temperature processing
Code to convert a wavefront distorsion image into a temperature map
%% BUILDING OF THE MEDIUM -- ME = Medium(n,nS);
ME = Medium('water','glass');
%% BUILDING OF THE MICROSCOPE -- Microscope(OBJ,tl_f,Sid4model,software)
OB = Objective(60,1.3,'Olympus');
MI = Microscope(OB,180,'sC8-944','PhaseLIVE');
MI.refl = false;
%% BUILDING OF THE ILLUMINATION -- IL = Illumination(lambda);
lambda = 550e-9;
IL = Illumination(lambda,ME);
%% IMPORT THE DATA
folder = pwd;
Im = importItfRef(folder,MI);
%% INTERFEROGRAM PROCESSING -- Im.QLSIprocess(IL);
IM = Im.QLSIprocess(IL,'definition','low');
%% CREATION OF THE MICROSCOPE
clear Med
Med(1) = MediumT('BK7', 1e-3,'progressive');
Med(2) = MediumT('water',1e-3,'progressive');
%Med(3) = MediumT('water',0.01e-3,'progressive');
Med = mesher(Med,MI);
%% linear algorithm, for temperature increases < 30°C
[IMT, GreenW, GreenT] = IMs.TMPprocess(Med);
%% non linear algorithm
[IMT, GreenW, GreenT] = IMs.TMPprocess(Med,'g',0.4,'nLoop',10,'imExpander',true,'TO',22);
%% DISPLAY THE RESULTS
IMT.figureT
