The dynamicFigure function

dynamicFigure() is a function that can display more than one type of image in one figure (wavefront and intensity for instance). It also enables the navigation thoughout a series of images using the left- and right-arrow keys of the keyboard.

For instance:

1dynamicFigure('ph', IM)

displays the OPD image of the IM object. If IM is an array of ImageQLSI objects, then it displays the OPD of the first object, and one can go from one OPD to the following one by using the left and right arrows. This way, all the OPD images of the IM array can be easily visualized.

../_images/displayFigure1.jpg

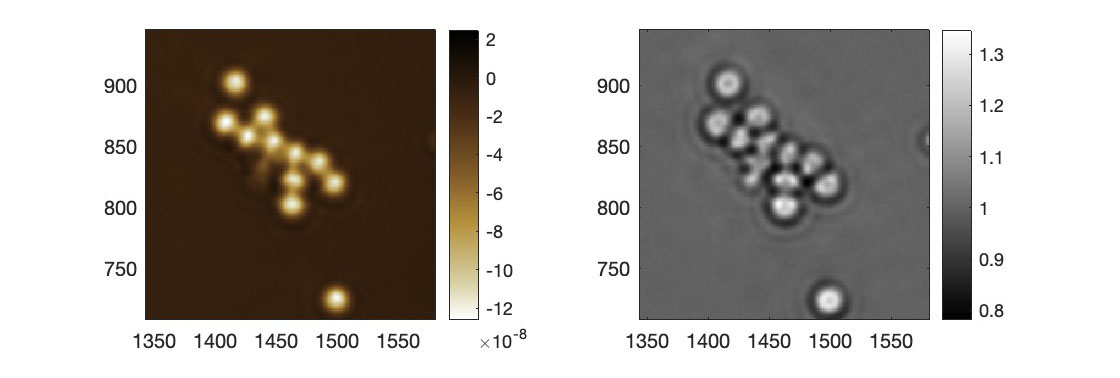

One can also display more than one image per figure. For instance, to display both wavefront and intensity, the synthax is:

1dynamicFigure('ph', IMlist,'bw', {IMlist.T})
2linkAxes

Don’t forget the braces when calling the property of the object. The keywork 'bw' just means here display in gray scale. The command linkAxes is optional. It links the two images so that any rescaling of the images using the zoom tool applies to both images.

../_images/displayFigure2.jpg

There is no limit in the number of images that can be displayed. On can for instance write:

1dynamicFigure('ph', IMlist,'bw', {IMlist.T},'bw', {IMlist.DWx},'bw', {IMlist.DWy})
2linkAxes
../_images/displayFigure4.png

to display the wavefront gradients as well.

To display a figure full screen, append the command:

fullscreen

To display a figure over the full screen width, append the command:

fullwidth

One can also use this function to display interferograms (main and reference):

1dynamicFigure('bw', {Itf.Itf}, 'bw', {Itf.Ref.Itf})
2fullscreen

One can add the "titles" keyword to enter titles to be displayed on top of each image:

1dynamicFigure('gb',IM,'gb',{IM.DWx},'gb',{IM.DWy}, ...
2     "titles",{'OPD','DWx','DWy'})
3linkAxes
../_images/displayFigureTitles.png

Note

Importantly, this function also works if IM or Itf is an object array. In this case, the first object of the series is primarily displayed, and then, by pressing the right-arrow or left-arrow keys, one can navigate to the next or previous images.
